Selected Platform Engineering Case Studies.
A technical deep-dive into complex infrastructure challenges, focusing on distributed systems, high-availability, and enterprise governance.
01 / GOVERNANCE
Building Enterprise SonarQube Governance
warningChallenge
Fragmented code quality standards across 100+ microservices led to technical debt explosion and security vulnerabilities reaching production.
Investigation
$ curl -X GET https://sonarqube.internal/api/projects/search
Found: 42 projects with 0 analysis in 90 days.
Critical: 15 services using deprecated Java 8 libs with known CVEs.
$ audit --service billing-api --depth recursive
Architecture

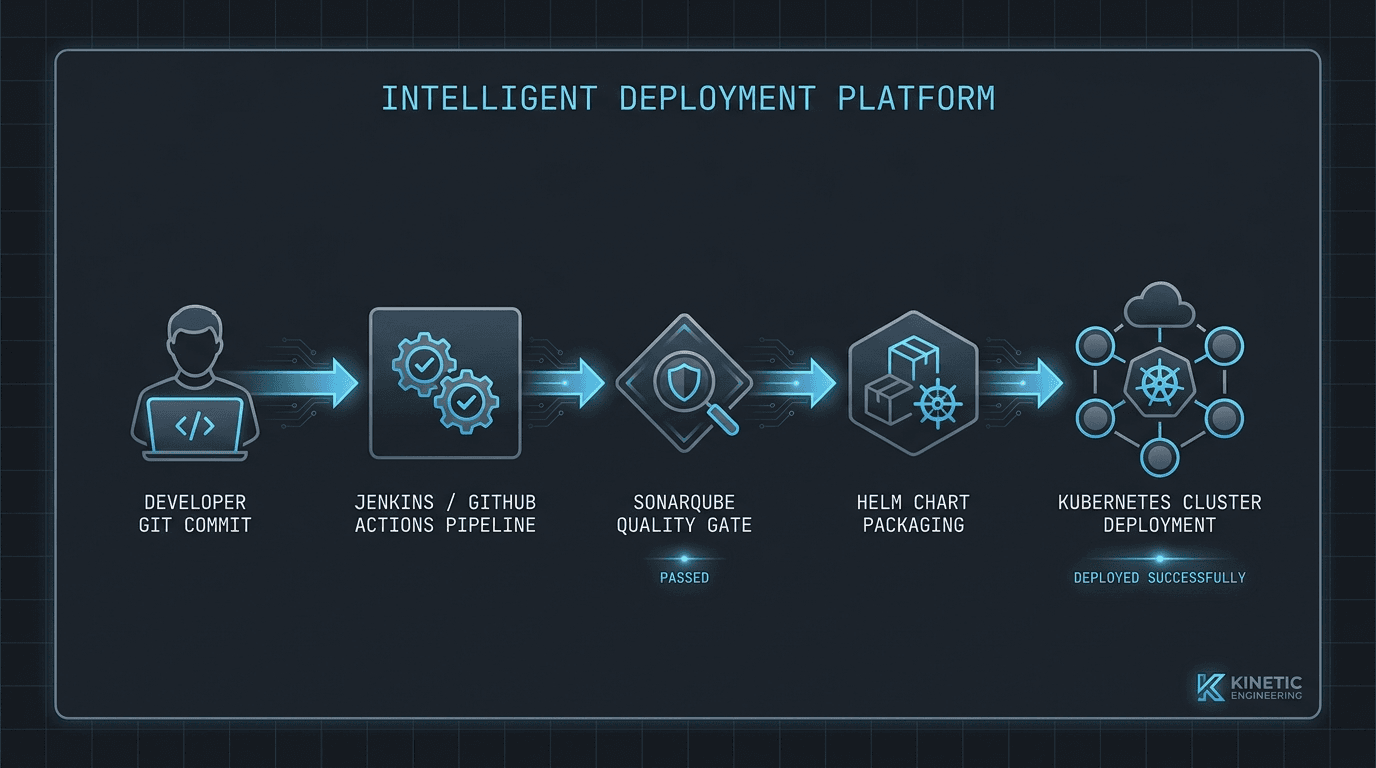

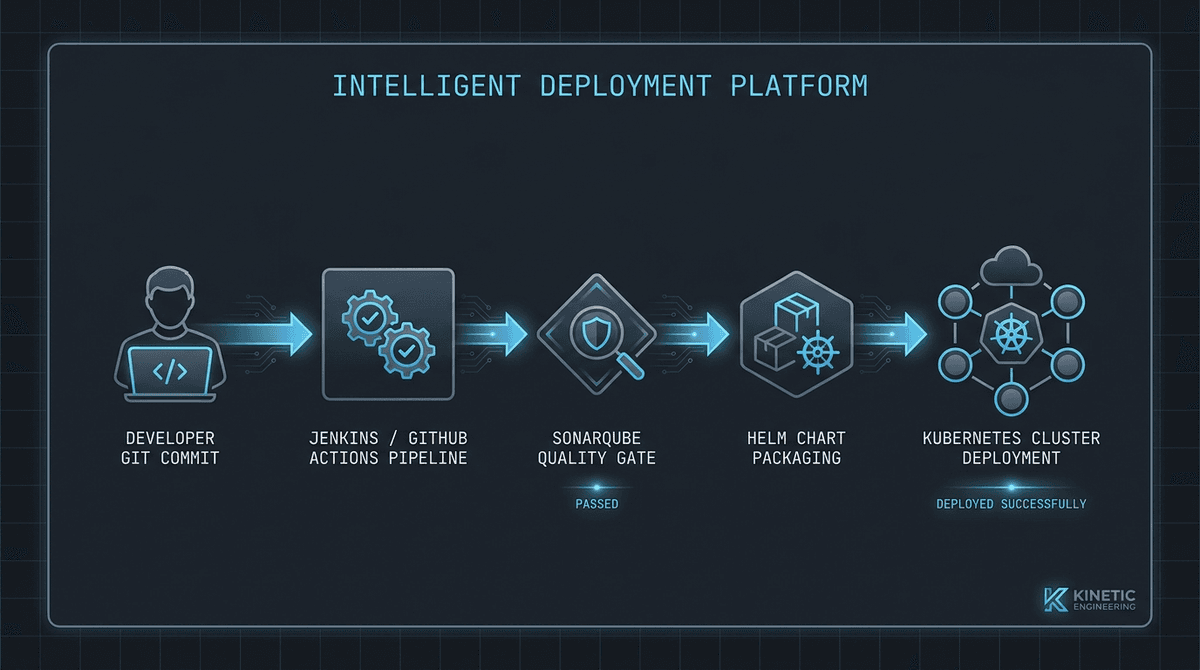

Centralized SonarQube Cluster on K8s with a Shared Library for Jenkins pipelines, ensuring every commit triggers an automated quality gate check.
Implementation
Deployed custom Quality Gate profiles for different languages and integrated SCM webhooks to block PR merges on failure.
Outcome
Achieved 95% test coverage mandate and eliminated manual security reviews for routine releases.
02 / NETWORK
Designing Traffic Routing Architecture

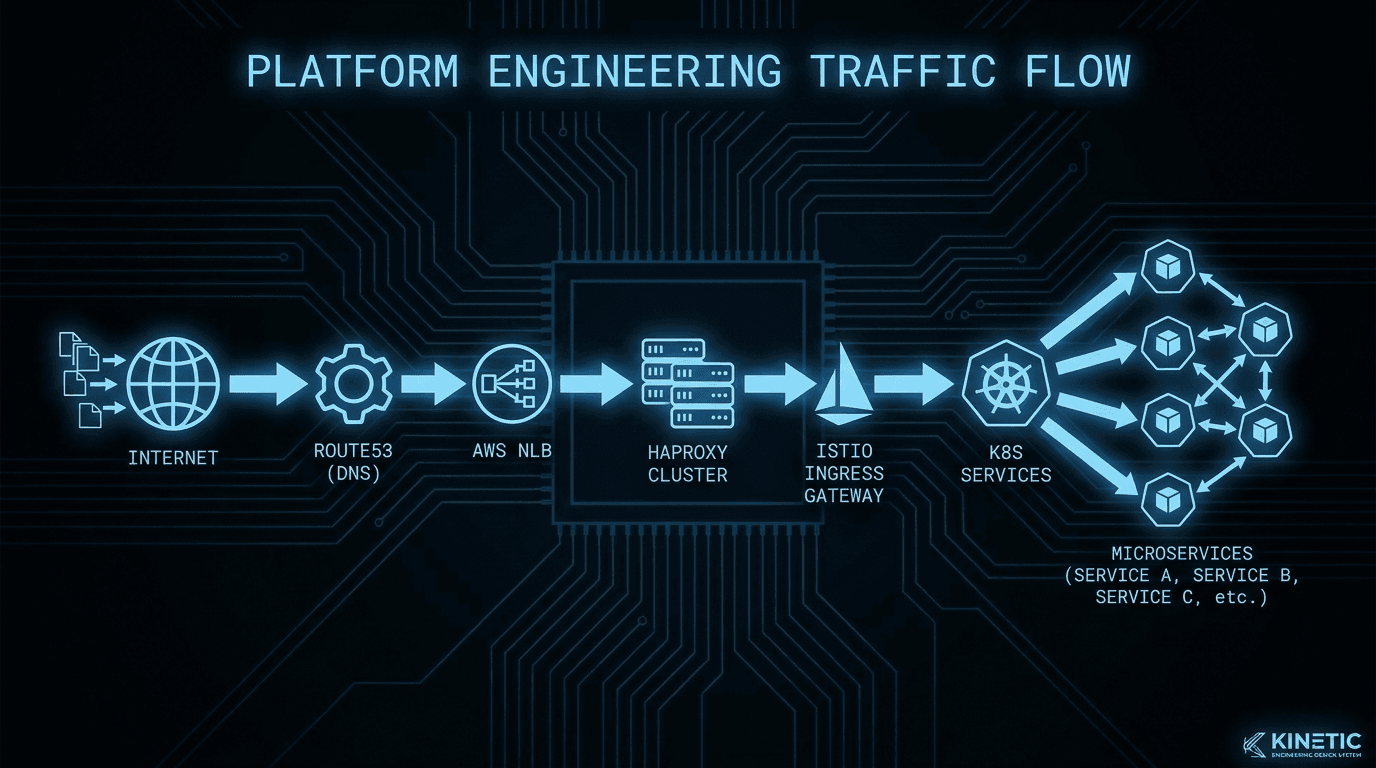

Implementing a resilient edge-to-service flow using Route53, NLB, HAProxy, and Istio Service Mesh to handle millions of requests with sub-millisecond overhead.
Investigation
Spikes in latency were traced to inefficient NLB-to-Target mapping and Istio Pilot synchronization delays during scale events.
// Envoy Stats Analysis
upstream_rq_time: P99 240ms
detecting circuit_breaker open events...
ERROR: Istio-proxy memory threshold reached on node-04
Uptime across global regions.
Key Logic
- check_circleBlue/Green routing
- check_circleCanary Deployments
- check_circlemTLS enforcement
Lesson Learned
"Always over-provision your ingress gateways before a marketing event, even with auto-scaling."
03 / IDENTITY
Troubleshooting AD & Entra ID Synchronization
reportBottleneck
Identity collisions in the AAD Connect Metaverse were causing critical authentication failures for executive users during a high-stakes merger.
LOGS // AADConnect_Sync_Engine
[14:02:11] SyncRuleError: Unable to join object. Source Anchor collision detected.
[14:02:12] Exception: DistinguishedName already exists in another forest partition.
check_circleResolution
Re-engineered the ImmutableID logic to use a custom extension attribute, resolving the multi-forest ambiguity and stabilizing the global GAL.
04 / OBSERVABILITY
Building Prometheus-Based Activity Monitoring
Investigation Phase
Analyzed existing ELK stacks which were crashing under the weight of high-cardinality transaction logs. Shifted strategy to metric-based ingestion for real-time alerting.
Architecture Highlight
Implemented Thanos for long-term metric storage and high-availability query aggregation across multiple EKS clusters.
Series Scraped / Sec
Alert Latency
Retention via S3
05 / MESSAGING
RabbitMQ Federation Across Environments
Achieving reliable message delivery between US-East and EU-West clusters to maintain eventual consistency for a global ordering system.
Implementation
Leveraged the RabbitMQ Federation plugin with Shovel for specific high-priority dead-letter queues. Used custom TLS certificates for cross-region encrypted transit.
rabbitmqctl set_parameter federation-upstream my-upstream \
'{"uri":"amqps://user:pass@eu-cluster.internal:5671","expires":3600000}'
Outcome
Zero message loss during the 2023 AWS Region outage.
Lesson Learned
Federation > Mirroring for high-latency WAN links.
System Ready for Scale?
Currently seeking roles in Platform Engineering, SRE, and DevSecOps. Let's build the future of reliable infrastructure together.
